VAM Seek - 2D Video Seek Marker

Visual Array Matrix Seeker — A JavaScript library for 2D video navigation.

Author: Susumu Takahashi (unhaya / haasiy)

A 2D visual seek grid for videos. Navigate any video by scenes, not timestamps. Client-side only. Zero server cost. Zero privacy risk.

License: Dual No Dependencies Browser

Try Live Demo

https://github.com/user-attachments/assets/395ff2ec-0372-465c-9e42-500c138eb7aa

I built this because I was frustrated with blind scrubbing in long videos.

Stop Blind Scrubbing

Traditional Seek Bar VAM Seek
1D timeline, trial-and-error 2D grid, instant visual navigation
Server-generated thumbnails Client-side canvas extraction
Heavy infrastructure Zero server load, lightweight JS
Complex integration One-line setup

Quick Start

<!-- 1. Add the script -->
<script src="https://cdn.jsdelivr.net/gh/unhaya/vam-seek/dist/vam-seek.js"></script>

<!-- 2. Connect to your video -->
<script>
  VAMSeek.init({
    video: document.getElementById('myVideo'),
    container: document.getElementById('seekGrid'),
    columns: 5,
    secondsPerCell: 15
  });
</script>

That’s it. See docs/INTEGRATION.md for full documentation.

Alternative: Standalone Demo

Want a ready-to-use page without integration? Download deploy/demo/index.html - a single HTML file with all features built-in. No library import needed.

API

const vam = VAMSeek.init({
  video: document.getElementById('video'),
  container: document.getElementById('grid'),
  columns: 5,
  secondsPerCell: 15,
  onSeek: (time, cell) => console.log(`Seeked to ${time}s`),
  onError: (err) => console.error('Error:', err)
});

// Methods
vam.seekTo(120);              // Seek to 2:00
vam.moveToCell(2, 3);         // Move to column 2, row 3
vam.configure({ columns: 8 }); // Update settings
vam.destroy();                // Clean up

Features

Privacy & Architecture

Your video never leaves the browser.

All frame extraction happens client-side using the Canvas API. When the page closes, everything is gone. No data is ever sent to any server.

Traditional VAM Seek
Video uploaded to server Video stays in browser
Server-side FFmpeg processing Client-side Canvas API
CDN bandwidth costs Zero server cost
Privacy risk Fully private

Keyboard Shortcuts

Key Action
Arrow Keys Move marker by cell
Space Play/Pause
Home First cell
End Last cell

Browser Support

Design Philosophy

After seeing over 10,000 people access this tool, I realized that my mission wasn’t just to make it “small,” but to make it “indispensable.”

I chose to trade bytes for a significantly better user experience:

Multi-Video LRU Cache

VAM Seek now “remembers” thumbnail grids for up to 5 videos. Switch back to a video you’ve seen, and the grid appears instantly. No re-extraction, no waiting.

Reliability & Stability

I’ve crushed several bugs discovered during the initial surge. The code now handles various video formats and edge cases gracefully.

Smooth Physics

The marker movement uses refined easing for that 60fps “buttery smooth” feel.

It remains ultra-lightweight with zero dependencies. This is the balance between “minimal code” and “maximum experience.”

Test the library - Load your own video and try all features.

License & Spirit

For Individuals: I want this to be a new standard for video navigation. Please use it, enjoy it, and share your feedback. It’s free for personal and educational use.

For Developers: Feel free to experiment! This logic is my gift to the community.

For Commercial Use & Pirates: If you want to use this to generate revenue or create a paid derivative, you must obtain a commercial license. I built this with passion and 30 years of design experience—I will not tolerate those who try to profit from “pirated” versions of this logic without permission.

For commercial licensing inquiries: haasiy@gmail.com

Changelog

Current: v1.3.5

v1.3.5 (2026-01-18)

v1.0 (2026-01-10)

Examples

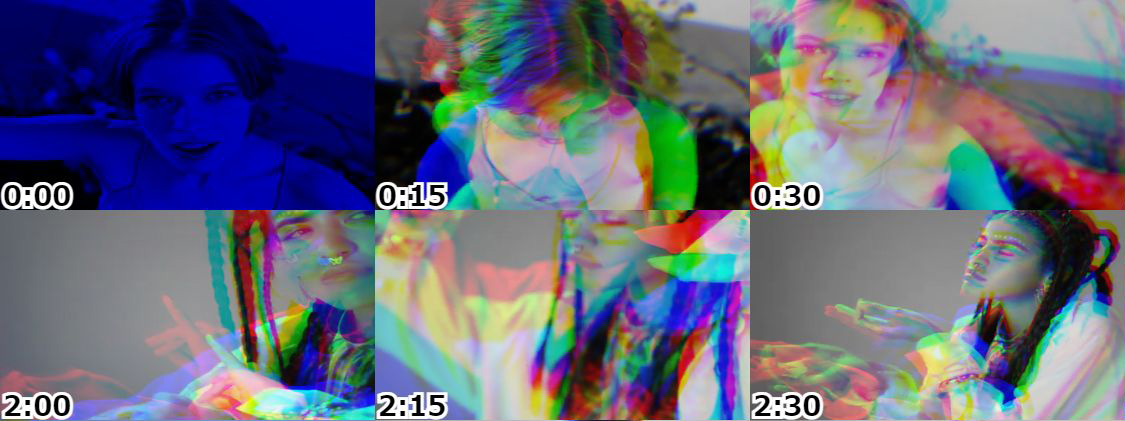

VAM-RGB: Temporal Encoding for AI

VAM-RGB packs 3 moments into a single image:

VAM-RGB Sample

Channel Time Meaning
R (Red) T-0.5s Past
G (Green) T0 Present
B (Blue) T+0.5s Future

Motion appears as chromatic aberration. Static objects remain grayscale. Moving objects show RGB separation proportional to speed and direction.

AI perceives temporal flow from a single image—no video streaming required.

Credits

Evolved from VAM Desktop.
